DIV-01 / CNC Machine Tools

CNC
machine tools.

From compact vertical centers to double-column gantry mills —precision metal-cutting machines sourced from specialist Chinese OEMs, configured to your process, and shipped turn-key.

Representative Output

Precision cutting & tooling.

Representative machining and tooling from the OEM floors in our sourcing network —illustrative of capability, not a specific machine photo.

[ GALLERY ]

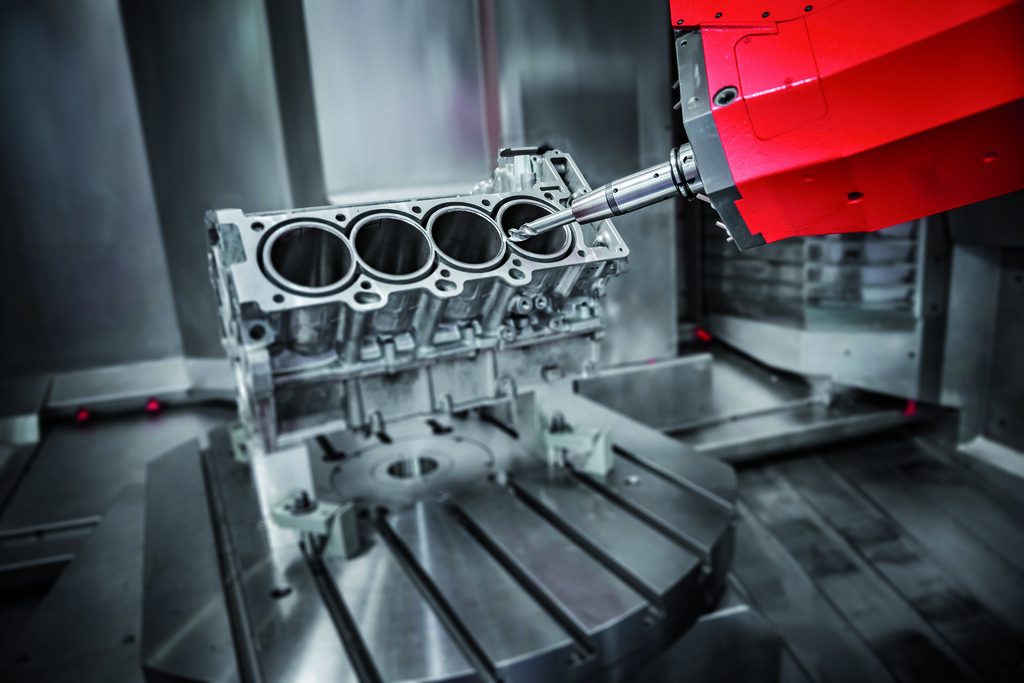

Interior of a CNC machining center with workpiece and tooling — CNC machining center —working envelope

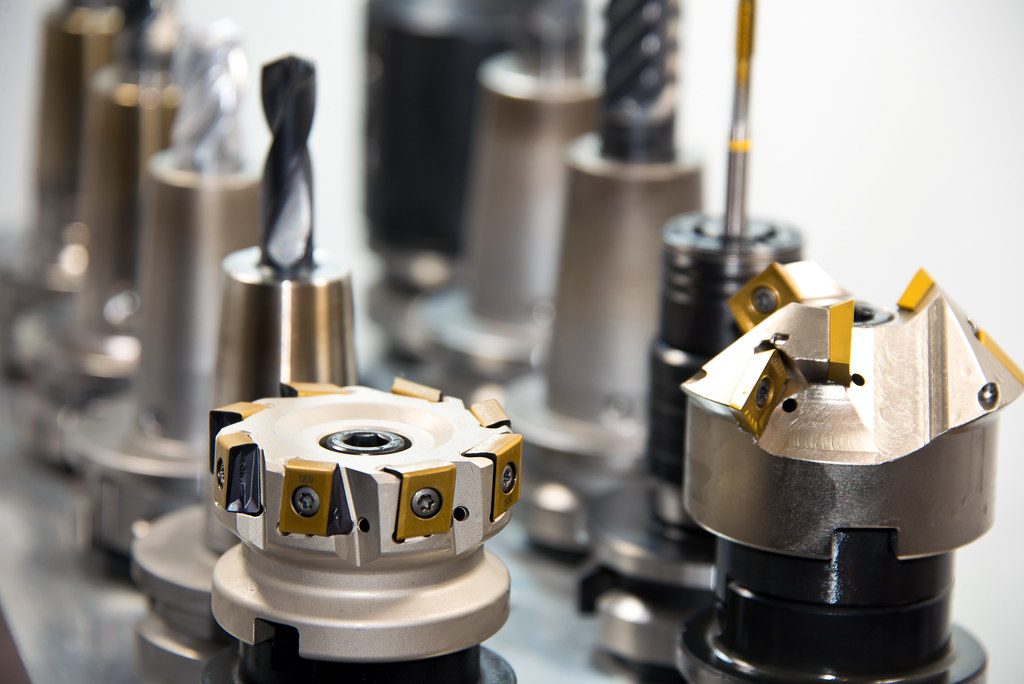

Indexable face mills and tool holders for CNC machining — Indexable face mills & tool holders

Machine Series

Six families, one standard of rigidity.

[ 06 SERIES ]

[ VMC ]

Vertical Machining Centers

High-rigidity cast-iron VMCs for prismatic parts —mold, automotive, aerospace and general precision work.

3-AXISBT40 / BT50ROLLER / LINEAR

DATASHEET →/span>

[ HMC ]

Horizontal Machining Centers

T-layout HMCs with exchange workbench / APC for unattended, heavy-cutting production.

APC4-AXIS STDHEAVY CUT

DATASHEET →/span>

[ GANTRY ]

Gantry Machining Centers

Double-column portal mills for large structural parts —energy, heavy machinery, aerospace.

SQUARE / T-RAMLARGE TABLE

DATASHEET →/span>

[ 5-AXIS ]

5-Axis / Dynamic Column

Moving-column 5-axis simultaneous machines with integrated rotary table —complex geometries, one setup.

5-AXISROTARY TABLE

DATASHEET →/span>

[ DRILL-TAP ]

Drilling & Tapping Centers

High-speed centers for mass small-part output —3C, electronics and automotive components.

HIGH-SPEEDFAST ATC

DATASHEET →/span>

[ LATHE ]

Inclined-Bed CNC Lathes

Inclined-bed turning centers for shafts & chucked parts —thermally stable, high-rigidity cast bed.

TURNINGLIVE TOOLING OPT

DATASHEET →/span>

Full Specifications

Every model, every parameter.

Complete specification tables for the full GERMET CNC range —vertical, horizontal, gantry, dynamic-column, drilling-tapping and inclined-bed turning centers. Jump to a series below, then scroll any table sideways to compare models side by side.

[ 8 SERIES · 55 MODELS ]

—All figures are reference values transcribed from the source catalog. Some model designations follow the catalog and may denote configuration variants. Confirm travel, spindle, motor, accuracy, footprint and weight on the model-specific datasheet before ordering.

VMC Plus (1) VMC Plus (2) VTC Dynamic Column DC Drill-Tap HMC Horizontal GMC Square Sleeper GMC T-Ram CK Lathe

SPEC-01 / Vertical Plus

VMC Vertical Plus Series (1)

Eight high-rigidity cast-iron vertical machining centers for prismatic parts —mold, automotive, aerospace and general precision work. Three linear-roller guideways, disc-type ATC.

[ VMC VERTICAL PLUS (1) —8 MODELS ]
Parameter	Unit	VMC-855	VMC-1055	VMC-1255	VMC-1555	VMC-1375/3	VMC-1378/3	VMC-1570/3	VMC-1890
X-axis travel	mm	800	1000	1200	1500	1300	1300	1500	1800
Y-axis travel	mm	500	500	600	800	700	800	700	900
Z-axis travel	mm	500	500	600	600	600	600	700	800
Spindle nose to table	mm	125—25	175—75	220—20	220—70	150—50	150—50	200—00	200—000
Spindle centre to column	mm	550	550	650	850	750	850	750	950
Guide rail	—/td>	3× linear roller	3× linear roller	3× linear roller	3× linear roller	3× linear roller	3× linear roller	3× linear roller	3× linear roller
Table size	mm	900×500	1100×500	1300×600	1600×700	1400×700	1500×800	1600×700	2000×900
T-slot (n×w×spacing)	mm	5-18×100	5-18×100	5-18×100	5-18×130	5-18×130	5-18×130	7-18×100	7-18×130
Max table load	kg	500	800	1000	1200	1000	1200	1200	2000
Spindle speed	rpm	8000	8000	8000	8000	8000	8000	6000	6000
Spindle taper	—/td>	BT40	BT40	BT50	BT50	BT50	BT50	BT50	BT50
Spindle motor	kW	5.5/7.5	7.5/11	11/15	11/15	11/15	11/15	15/18.5	18.5/22
Built-in spindle (opt.)	rpm	8000	8000	6000	6000	—/td>	—/td>	—/td>	—/td>
X/Y/Z rapid traverse	m/min	36/36/30	36/36/30	30/30/24	30/30/24	30/30/24	30/30/24	24/24/20	24/24/20
Cutting feed	m/min	1—0	1—0	1—0	1—0	1—0	1—0	1—0	1—0
Tool changer	—/td>	Disc type	Disc type	Disc type	Disc type	Disc type	Disc type	Disc type	Disc type
Tool capacity	pcs	24	24	24	24	24	24	24	32
Max tool diameter	mm	80	80	100	100	100	100	100	125
Max tool length	mm	250	250	300	300	300	300	300	350
Max tool weight	kg	7	7	15	15	15	15	15	20
Tool change time	s	1.5	1.5	2.5	2.5	2.5	2.5	2.5	3.0
X/Y/Z servo motor	kW	1.5/1.5/2.5	2.0/2.0/3.0	3.0/3.0/4.0	3.0/4.0/4.0	—/td>	—/td>	—/td>	—/td>
Positioning accuracy	mm	0.008	0.008	0.010	0.010	0.010	0.010	0.012	0.012
Repeatability	mm	0.005	0.005	0.006	0.006	0.006	0.006	0.008	0.008
Power requirement	kVA	15	20	25	30	25	25	35	45
Machine size (L×W×H)	mm	2800×2300×2600	3200×2400×2700	3400×2600×2800	3800×3000×3100	3600×2800×2900	3800×3000×3000	4000×2900×3200	4800×3400×3500
Machine weight	kg	5000	6000	8000	10000	9000	10000	12000	16000

—Reference values from the source catalog; confirmed on the model-specific datasheet before order.

SPEC-02 / Vertical Plus

VMC Vertical Plus Series (2)

Eight further vertical centers spanning BT40 high-speed and BT50 heavy-cut configurations —the /2 and /3 variants differ in spindle, ATC capacity and structure.

[ VMC VERTICAL PLUS (2) —8 MODELS ]
Parameter	Unit	VMC-1070/2	VMC-1395/2	VMC-1385/2	VMC-1590/2	VMC-1070/3	VMC-1395/3	VMC-1385/3	VMC-1890/3
X-axis travel	mm	1000	1300	1300	1500	1000	1300	1300	1800
Y-axis travel	mm	700	950	850	900	700	950	850	900
Z-axis travel	mm	600	600	600	700	600	600	600	800
Spindle nose to table	mm	150—50	170—70	170—70	170—70	150—50	170—70	170—70	200—000
Spindle centre to column	mm	750	1000	900	950	750	1000	900	950
Guide rail	—/td>	3× linear roller	3× linear roller	3× linear roller	3× linear roller	3× linear roller	3× linear roller	3× linear roller	3× linear roller
Table size	mm	1100×700	1400×950	1400×850	1600×900	1100×700	1400×950	1400×850	2000×900
T-slot (n×w×spacing)	mm	5-18×130	7-18×130	7-18×130	7-18×130	5-18×130	7-18×130	7-18×130	7-18×130
Max table load	kg	800	1500	1200	1500	800	1500	1200	2000
Spindle speed	rpm	8000	6000	8000	6000	8000	6000	8000	6000
Spindle taper	—/td>	BT40	BT50	BT40	BT50	BT40	BT50	BT40	BT50
Spindle motor	kW	7.5/11	11/15	11/15	15/18.5	7.5/11	11/15	11/15	18.5/22
X/Y/Z rapid traverse	m/min	36/36/30	24/24/20	36/36/30	24/24/20	36/36/30	24/24/20	36/36/30	24/24/20
Tool capacity	pcs	24	24	24	24	24	24	24	32
Max tool diameter	mm	80	100	80	100	80	100	80	125
Max tool length	mm	250	300	250	300	250	300	250	350
Max tool weight	kg	7	15	7	15	7	15	7	20
Tool change time	s	1.5	2.5	1.5	2.5	1.5	2.5	1.5	3.0
Positioning accuracy	mm	0.008	0.010	0.008	0.010	0.008	0.010	0.008	0.012
Repeatability	mm	0.005	0.006	0.005	0.006	0.005	0.006	0.005	0.008
Power requirement	kVA	20	30	25	35	20	30	25	45
Machine size (L×W×H)	mm	3000×2600×2700	3800×3200×3000	3600×3000×2900	4000×3200×3200	3000×2600×2700	3800×3200×3000	3600×3000×2900	4800×3400×3500
Machine weight	kg	6500	11000	9000	13000	6500	11000	9000	16000

—Reference values from the source catalog; confirmed on the model-specific datasheet before order.

SPEC-03 / Dynamic Column

VTC Dynamic Column Series

Moving-column high-speed centers —12,000 rpm spindles and 48 m/min rapids for fast, accurate small-to-medium prismatic work.

[ VTC DYNAMIC COLUMN —5 MODELS ]
Parameter	Unit	VTC-550/2	VTC-550/3	VTC-650/2	VTC-650/3	VTC-800/2
X-axis travel	mm	550	550	650	650	800
Y-axis travel	mm	400	400	500	500	600
Z-axis travel	mm	400	400	500	500	600
Spindle nose to table	mm	100—00	100—00	120—20	120—20	150—50
Spindle centre to column	mm	450	450	550	550	650
Guide rail	—/td>	3× linear roller	3× linear roller	3× linear roller	3× linear roller	3× linear roller
Table size	mm	600×400	600×400	700×500	700×500	900×600
T-slot (n×w×spacing)	mm	3-14×100	3-14×100	5-14×100	5-14×100	5-14×100
Max table load	kg	250	250	350	350	500
Spindle speed	rpm	12000	12000	12000	12000	10000
Spindle taper	—/td>	BT30	BT30	BT40	BT40	BT40
Spindle motor	kW	3.7/5.5	3.7/5.5	5.5/7.5	5.5/7.5	7.5/11
X/Y/Z rapid traverse	m/min	48/48/42	48/48/42	48/48/42	48/48/42	48/48/42
Tool capacity	pcs	16	16	20	20	24
Max tool diameter	mm	60	60	80	80	80
Max tool length	mm	200	200	250	250	250
Max tool weight	kg	3	3	5	5	7
Tool change time	s	1.2	1.2	1.5	1.5	1.8
Positioning accuracy	mm	0.005	0.005	0.006	0.006	0.008
Repeatability	mm	0.003	0.003	0.004	0.004	0.005
Power requirement	kVA	10	10	15	15	20
Machine size (L×W×H)	mm	2200×2000×2400	2200×2000×2400	2500×2200×2600	2500×2200×2600	3000×2500×2800
Machine weight	kg	3500	3500	4500	4500	6000

—Reference values from the source catalog; confirmed on the model-specific datasheet before order.

SPEC-04 / Drill-Tap

DC Drilling & Tapping Center Series

High-speed drilling and tapping centers for mass small-part output —3C, electronics and automotive components. Up to 24,000 rpm and sub-1 s tool changes.

[ DC DRILLING & TAPPING —5 MODELS ]
Parameter	Unit	DC-405	DC-705	DC-850	DC-905	DC-1365
X-axis travel	mm	400	700	850	900	1300
Y-axis travel	mm	300	400	500	500	600
Z-axis travel	mm	300	350	400	400	500
Spindle nose to table	mm	150—50	150—00	150—50	150—50	200—00
Table size	mm	450×300	800×400	900×500	1000×500	1400×600
Max table load	kg	200	350	500	500	800
Spindle speed	rpm	24000	24000	24000	12000	12000
Spindle taper	—/td>	BT30	BT30	BT40	BT40	BT40
Spindle motor	kW	3.7/5.5	5.5/7.5	7.5/11	7.5/11	11/15
X/Y/Z rapid traverse	m/min	48/48/48	48/48/48	48/48/48	36/36/36	36/36/36
Tool capacity	pcs	16	21	21	24	24
Max tool diameter	mm	60	80	80	80	100
Max tool length	mm	200	250	250	250	300
Max tool weight	kg	3	5	5	7	7
Tool change time	s	0.9	1.2	1.2	1.5	1.5
Positioning accuracy	mm	0.005	0.006	0.006	0.008	0.008
Repeatability	mm	0.003	0.004	0.004	0.005	0.005
Power requirement	kVA	8	12	15	20	25
Machine size (L×W×H)	mm	1800×1600×2200	2200×1800×2400	2500×2000×2600	2600×2100×2700	3200×2400×2800
Machine weight	kg	2500	3500	4500	5000	7000

—Reference values from the source catalog; confirmed on the model-specific datasheet before order.

SPEC-05 / Horizontal Plus

HMC Horizontal Plus Series

T-layout horizontal machining centers with twin-pallet APC for unattended heavy-cutting production —ten models across two configuration groups.

[ HMC HORIZONTAL PLUS —GROUP A · 5 MODELS ]
Parameter	Unit	HMC-405	HMC-505	HMC-635	HMC-530	HMC-630
X-axis travel	mm	400	500	630	500	630
Y-axis travel	mm	400	500	630	500	630
Z-axis travel	mm	400	500	630	500	630
Spindle nose to table centre	mm	0—00	0—00	0—30	100—00	100—30
Table size	mm	400×400	500×500	630×630	500×500	630×630
Max table load	kg	300	500	800	500	800
Spindle speed	rpm	8000	8000	6000	8000	6000
Spindle taper	—/td>	BT40	BT40	BT50	BT40	BT50
Spindle motor	kW	5.5/7.5	7.5/11	11/15	7.5/11	11/15
X/Y/Z rapid traverse	m/min	36/36/30	36/36/30	24/24/20	36/36/30	24/24/20
Tool capacity	pcs	24	24	24	24	24
Pallets (APC)	pcs	2	2	2	2	2
Positioning accuracy	mm	0.008	0.008	0.010	0.008	0.010
Repeatability	mm	0.005	0.005	0.006	0.005	0.006
Power requirement	kVA	15	20	30	20	30
Machine size (L×W×H)	mm	3000×3000×2800	3500×3500×3000	4000×4000×3200	3500×3500×3000	4000×4000×3200
Machine weight	kg	6000	8000	12000	8000	12000

[ HMC HORIZONTAL PLUS —GROUP B · 5 MODELS ]
Parameter	Unit	HMC-805	HMC-605	HMC-905	HMC-630	HMC-1000
X-axis travel	mm	800	600	800	630	1000
Y-axis travel	mm	700	600	700	630	800
Z-axis travel	mm	700	600	700	630	800
Table size	mm	800×700	600×600	800×700	630×630	1000×800
Max table load	kg	1000	800	1000	800	1500
Spindle speed	rpm	6000	8000	6000	6000	4000
Spindle taper	—/td>	BT50	BT40	BT50	BT50	BT50
Spindle motor	kW	15/18.5	11/15	15/18.5	11/15	18.5/22
Tool capacity	pcs	32	24	32	24	40
Pallets (APC)	pcs	2	2	2	2	2
Positioning accuracy	mm	0.010	0.008	0.010	0.010	0.012
Repeatability	mm	0.006	0.005	0.006	0.006	0.008
Power requirement	kVA	35	25	35	30	50
Machine weight	kg	15000	10000	15000	12000	20000

—Two configuration groups (A & B) as listed in the source catalog. Figures are reference values, confirmed on the model-specific datasheet before order.

SPEC-06 / Gantry Square Sleeper

GMC Gantry Square Sleeper Series

Double-column portal mills with a square-sleeper spindle head for large structural parts —energy, heavy machinery and aerospace. Optional 24T—0T magazine.

[ GMC GANTRY SQUARE SLEEPER —GROUP A · 5 MODELS ]
Parameter	Unit	GMC-5030	GMC-4030	GMC-5020	GMC-6020	GMC-6030
X-axis travel	mm	3000	4000	5000	6000	6000
Y-axis travel	mm	2000	3000	2000	2000	3000
Z-axis travel	mm	800	1000	800	1000	1000
Distance between columns	mm	1600	2100	1600	2100	2100
Spindle nose to table	mm	150—50	150—150	150—50	150—150	150—150
Table size	mm	3000×1500	4000×2000	5000×1500	6000×1500	6000×2000
Table load	kg/m虏	3000	3000	3000	3000	3000
Spindle speed	rpm	6000	6000	6000	6000	6000
Spindle taper	—/td>	BT50	BT50	BT50	BT50	BT50
Spindle motor	kW	15/18.5	15/18.5	15/18.5	15/18.5	15/18.5
ATC magazine (opt.)	pcs	24T/32T/40T/60T	24T/32T/40T/60T	24T/32T/40T/60T	24T/32T/40T/60T	24T/32T/40T/60T
Positioning accuracy	mm	0.015	0.020	0.025	0.030	0.030
Repeatability	mm	0.010	0.012	0.015	0.018	0.018
Power requirement	kVA	40	45	50	55	60
Machine size (L×W×H)	mm	8000×5000×4500	9000×6000×5000	10000×5000×4500	11000×5000×5000	11000×6000×5000
Machine weight	kg	20000	25000	30000	35000	40000

[ GMC GANTRY SQUARE SLEEPER —GROUP B · 5 MODELS ]
Parameter	Unit	GMC-5020	GMC-4020	GMC-6020	GMC-6040	GMC-8040
X-axis travel	mm	4000	4000	6000	6000	8000
Y-axis travel	mm	2000	2000	2000	4000	4000
Z-axis travel	mm	1000	1000	1000	1200	1200
Table size	mm	4000×1500	4000×1500	6000×1500	6000×3000	8000×3000
Table load	kg/m虏	3000	3000	3000	3000	3000
Spindle speed	rpm	6000	6000	6000	4000	4000
Spindle taper	—/td>	BT50	BT50	BT50	BT50	BT50
Spindle motor	kW	15/18.5	15/18.5	15/18.5	18.5/22	22/30
ATC magazine (opt.)	pcs	24T/32T/40T/60T	24T/32T/40T/60T	24T/32T/40T/60T	24T/32T/40T/60T	24T/32T/40T/60T
Power requirement	kVA	50	50	60	70	80
Machine weight	kg	30000	30000	40000	50000	60000

—Two configuration groups (A & B) as listed in the source catalog. Figures are reference values, confirmed on the model-specific datasheet before order.

SPEC-07 / Gantry T-Ram

GMC Gantry T-Shaped Ram Series

Gantry mills with a T-shaped ram for extended reach and heavy Z-axis cutting on large workpieces —eight models across two configuration groups.

[ GMC GANTRY T-SHAPED RAM —GROUP A · 4 MODELS ]
Parameter	Unit	GMC-1710	GMC-1810	GMC-2510	GMC-2520
X-axis travel	mm	2000	2000	3000	3000
Y-axis travel	mm	1500	1500	2000	2000
Z-axis travel	mm	800	800	1000	1000
Distance between columns	mm	1200	1200	1500	1500
Spindle nose to table	mm	100—00	100—00	100—100	100—100
Table size	mm	2000×1200	2000×1200	3000×1500	3000×1500
Table load	kg/m虏	3000	3000	3000	3000
Spindle speed	rpm	6000	6000	6000	6000
Spindle taper	—/td>	BT40	BT40	BT50	BT50
Spindle motor	kW	11/15	11/15	15/18.5	15/18.5
ATC magazine (opt.)	pcs	24T/32T/40T/60T	24T/32T/40T/60T	24T/32T/40T/60T	24T/32T/40T/60T
Positioning accuracy	mm	0.012	0.012	0.015	0.015
Repeatability	mm	0.008	0.008	0.010	0.010
Power requirement	kVA	30	30	40	40
Machine weight	kg	12000	12000	18000	18000

[ GMC GANTRY T-SHAPED RAM —GROUP B · 4 MODELS ]
Parameter	Unit	GMC-3810	GMC-2520	GMC-3010	GMC-4020
X-axis travel	mm	4000	3000	3000	4000
Y-axis travel	mm	2500	2000	2000	2500
Z-axis travel	mm	1000	1000	1000	1200
Table size	mm	4000×2000	3000×1500	3000×1500	4000×2000
Table load	kg/m虏	3000	3000	3000	3000
Spindle speed	rpm	4000	6000	6000	4000
Spindle taper	—/td>	BT50	BT50	BT50	BT50
Spindle motor	kW	18.5/22	15/18.5	15/18.5	22/30
ATC magazine (opt.)	pcs	24T/32T/40T/60T	24T/32T/40T/60T	24T/32T/40T/60T	24T/32T/40T/60T
Power requirement	kVA	50	40	40	60
Machine weight	kg	25000	18000	18000	30000

—Two configuration groups (A & B) as listed in the source catalog. Figures are reference values, confirmed on the model-specific datasheet before order.

SPEC-08 / Inclined-Bed Lathe

CK Inclined-Bed CNC Lathe Series

Inclined-bed turning center for shafts and chucked parts —thermally stable, high-rigidity cast bed with a 12-position servo turret.

[ CK INCLINED-BED CNC LATHE ]
Parameter	Unit	CK605
Max swing over bed	mm	600
Max swing over carriage	mm	420
Max turning length	mm	750
Chuck size	inch	10
Spindle bore	mm	62
Spindle nose	—/td>	A2-8
Spindle speed	rpm	25—500
Turret	—/td>	12-position servo
X-axis travel	mm	250
Z-axis travel	mm	750
X rapid traverse	m/min	12
Z rapid traverse	m/min	15
X servo motor	kW	2.0
Z servo motor	kW	3.0
Positioning accuracy	mm	0.01
Repeatability	mm	0.005
Power requirement	kVA	15
Machine size (L×W×H)	mm	2600×1650×1800
Machine weight	kg	3000

—Reference values from the source catalog; confirmed on the model-specific datasheet before order.

Configuration

Specification highlights.

Every machine is built to a verified configuration sheet. The options below are available across the range; exact figures are model-specific.

[ STANDARD CONFIGURATION OPTIONS ]
Capability	Options across the range
CNC Control	FANUC · SIEMENS · GSK / optional
Spindle Taper	BT40 · BT50 · HSK · CAT / optional
Axis Configuration	3-axis · 4-axis (rotary) · 5-axis simultaneous
Guideway	Linear roller guideway · hardened box-way options
Spindle Drive	Belt / direct-drive / built-in (electric) spindle options
Tool Magazine	Arm-type ATC, 16—0+ tools; drum type on compact models
Enclosure & Lube	Full splash guard · automatic centralized lubrication
Accuracy Check	Laser pitch compensation · ballbar test on request
Compliance	CE alignment & documentation on request

—Exact travel, spindle speed, motor power, table load and footprint vary by model and configuration. Request the model-specific datasheet for verified figures before ordering.

[ + ] Standard accessories

Full protective enclosure
Automatic lubrication system
Spindle oil / air cooling
Working lamp & warning lamp
MPG handwheel
Tool box & foundation bolts
Operation & maintenance manual

[ ± ] Optional extras

4th-axis rotary table
Tool setter & workpiece probe
Chip conveyor & oil skimmer
Linear scale feedback
Through-spindle coolant
CNC tool management system
Air-conditioned electrical cabinet

Need the exact model & numbers? Get the datasheet.

Request Datasheet WhatsApp

CNCmachine tools.

Precision cutting & tooling.

Six families, one standard of rigidity.

Vertical Machining Centers

Horizontal Machining Centers

Gantry Machining Centers

5-Axis / Dynamic Column

Drilling & Tapping Centers

Inclined-Bed CNC Lathes

Every model, every parameter.

VMC Vertical Plus Series (1)

VMC Vertical Plus Series (2)

VTC Dynamic Column Series

DC Drilling & Tapping Center Series

HMC Horizontal Plus Series

GMC Gantry Square Sleeper Series

GMC Gantry T-Shaped Ram Series

CK Inclined-Bed CNC Lathe Series

Specification highlights.

[ + ] Standard accessories

[ ± ] Optional extras

Need the exact model & numbers? Get the datasheet.

CNC
machine tools.
